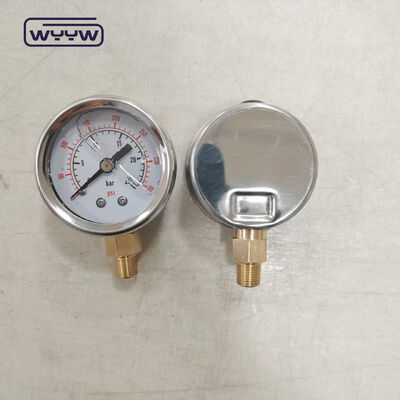

| Name | Glycerine pressure gauge |
|---|---|
| Dial Size | 50mm (custom sizes available) |
| Case | Stainless steel |
| Pressure Units | Mpa, bar, psi, kg/cm² (optional) |
| Ring | Gasket under the window |
| Movement | Brass |
| Socket | Brass |
| Bourdon Tube | Phosphor Bronze |
| Dial Plate and Pointer | Aluminum |
| Window | Plastic |
| Connection Sizes | 1/8" for 1.5"; 1/4" for 2", 2.5" case; 1/2" for 4", 6" |
| Connection Threads | Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT) |
| Mounting | Bottom |
| Accuracy | 1.5"(40mm), 2"(50mm), 2.5"(63mm) - 2.5% 4"(100mm) and 6"(150mm) - 1.6% |
| Pressure Limitation | Steady: 3/4x full scale value Fluctuation: 2/3x full scale value Short time: full scale value |
Qingdao DaZeFengYang is a professional manufacturer of pressure gauges and hardware tools, and a proud member of the China National Hardware Association. With the support of our highly skilled technical team, we strive to ensure that our pressure gauges meet both GB/T (Chinese Standards) and international quality standards.
We are certified with ISO9001 and CE for all our products, which include pressure gauges, gas regulators, cutting torches, welding torches, and more. Over the years, we have developed an impressive range of both specialized and standard products, all offered at competitive prices and with prompt delivery.
Our efficient sales and after-sales service make us an attractive option for customers worldwide, particularly distributors and importers from Europe, Southeast Asia, the Middle East, America, and Australia. We warmly invite friends and partners to reach out to us via phone or email, or to visit our company. We look forward to building a successful future together!
